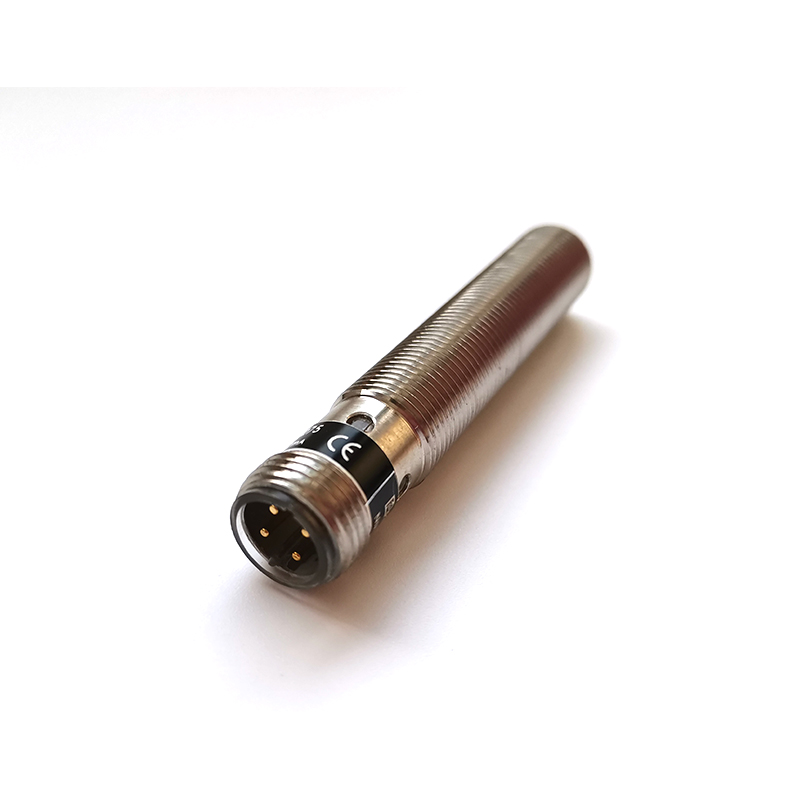

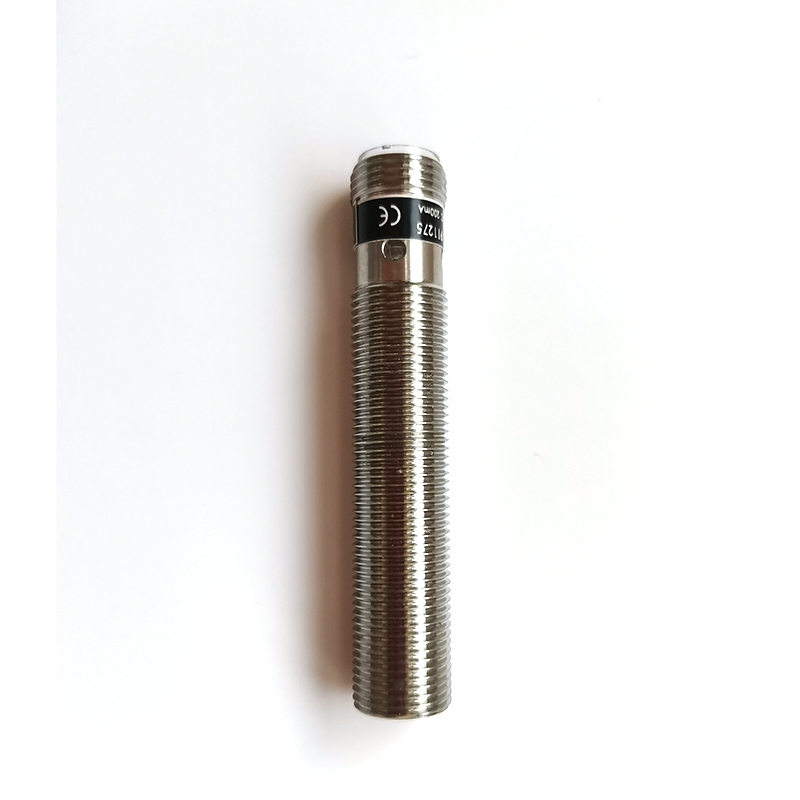

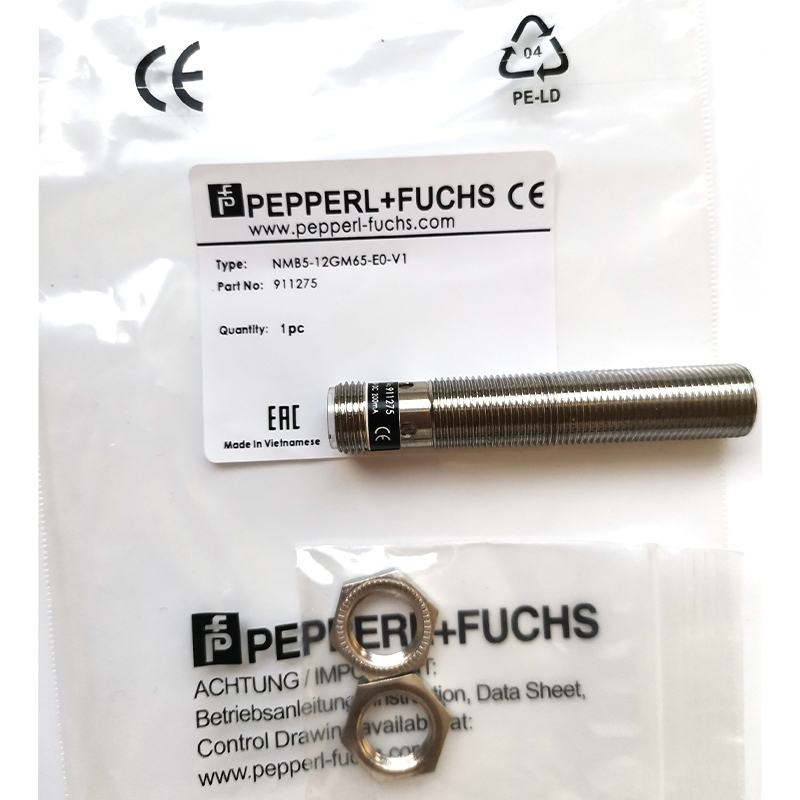

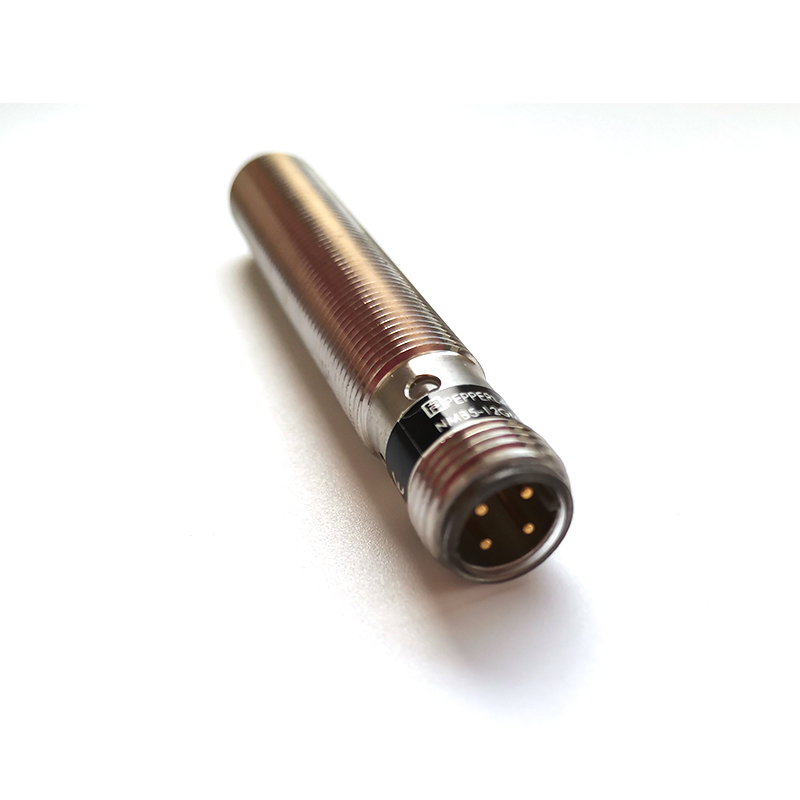

Inductive Sensor NMB5-12GM65-E0-V1
- 5mm flush
- stainless steel sensing surface
- increases operating distance
Switch function: Normally open (NO)
Output type: NPN
Rated working distance: 5 mm
Installation: Flush
Output polarity: DC
Guaranteed operating distance: 0-4.05 mm
Execution elements: ferrous and non-ferrous metal targets
Reduction coefficient r Al: 0.3
Reduction coefficient rCu: 0.2
Reduction coefficient r 304:0.85
Reduction coefficient r St37:1
Output type: 3 lines
Operating voltage: 10-30 volts DC
Switching frequency: 0-360 Hz
Hysteresis: 3-15 typical value 5%
Short-circuit protection: pulsating
Voltage drop: ≤ 2V DC
Working current: ≤200 MA
Off-state current: ≤10 microamps
No-load power supply current: ≤15 MA
Operating voltage indicator: LED, green
Switch status indicator: LED, yellow
